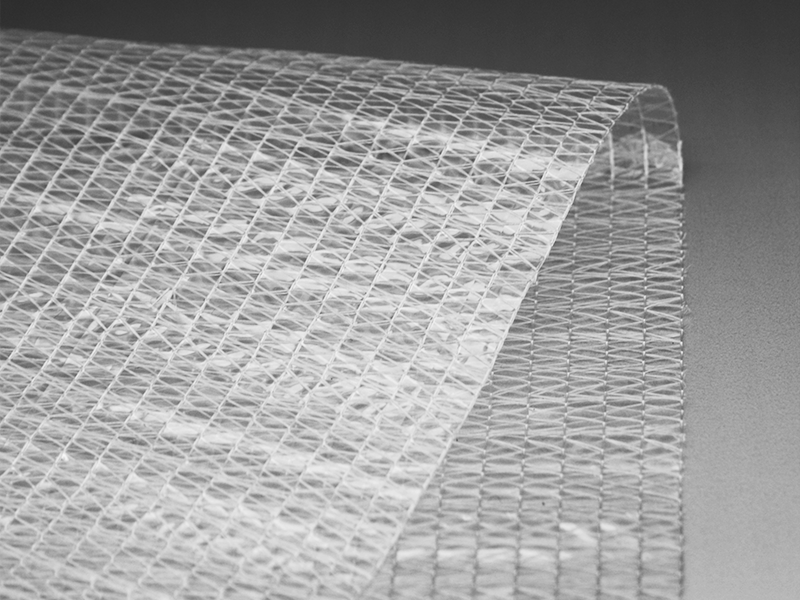

Eco-Bright 11-47 FR


Availability:

Model:
Eco-Bright 11-47 FR
Brand:
Hamilton

Eco-Bright 11-47FR is a new material with high permeability function.

Product Description

HAMILTON Eco-Bright Series

Eco-Bright 11-47FR is a new material with high permeability function. It has a very high light transmission effect, and is easy to fold, and the retraction volume is small, which can provide the light needs of plant growth to a large extent. The closed screen can reduce the sudden loss of greenhouse heat in the evening, thereby reducing the risk of condensation on the crop surface. At night, it can play a certain role in insulation to maintain a relatively stable temperature, thereby effectively saving energy.

Product information

Application: Inside Greenhouse

System: Sliding, Hanging

Material composition: 100% Poylester

Pattern: Transparent full

Width: 430cm

Flame retardant: Yes

Warranty: 5years under all types of greenhouse covering, see HAMILTON’s limited warranty for all terms, conditions, and exclusions in writing

Properties	Value	Unit	Test methods
Weigth		g/m²
Thickness		mm
Width of strips	5.0	mm
Tensile strength	197	N	ISO 13934-1
Elongation		%	ISO 13934-1
Light transmission in sunlight	89	%	Integrated sphere
Light transmission when overcast	82	%	Integrated sphere
UV light transmission		%
Shading level	11	%
Heat preservation		%	GB/T 11048-2008 B
Energy saving	47	%

Cases Projects

Harm Textile’s climate screens have been successfully deployed in over 20 countries across Europe, North America, the Middle East, and Asia, supporting hundreds of modern greenhouse projects with customized, energy-efficient solutions.

UAE Greenhouse Project

The Open-Shade Series eleganly soves the ventlation limtatons of traditonal shade nets s high-porosty open-weave structure efectvely fiters excessSolar radiation to recuce greenhouse tem peraures while allowing unrestrcted arfiow This "cooling breathablity" maintans heathy gas exchange

Greenhouse Screen Selection Case Study-China

Climate Challenges to project location: Winter heat retention and climate stability, summer temperature and light balance.

Greenhouse Screen Selection Case Study-UAE

This extreme diffusion configuration is designed to completely eliminate shadows and light spots, preventing lettuce tip burn, which is the most challenging issue for hydroponic lettuce production.
