You are here: Home / Products / Eco-Bright Series / Eco-Bright 11-45 S R FR

Eco-Bright 11-45 S R FR


Availability:

Model:
Eco-Bright 11-45 S R FR
Brand:
Hamilton

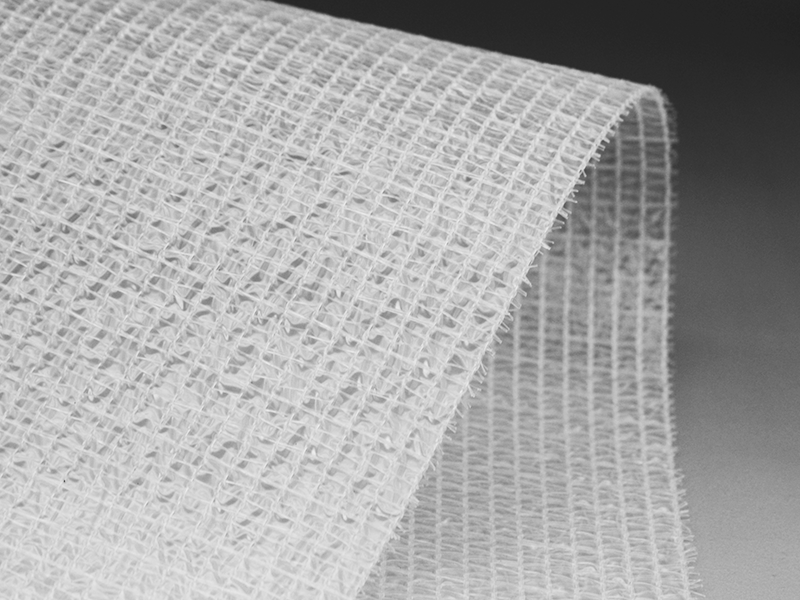

Eco-Bright 11-45 S R FR is a new material woven with high scattering capabilities. It has an effective light scattering function.

Product Description

HAMILTON Eco-Bright Series

Eco-Bright 11-45 S R FR is a new material woven with high scattering capabilities. It has an effective light scattering function, which can effectively protect the sensitive crop canopy from overheating and burns caused by direct light, thereby balancing crop growth and increasing crop yield. The closed screen can reduce the sudden loss of greenhouse heat in the evening, thereby reducing the risk of condensation on the crop surface. At night, it can play a certain role in insulation to maintain a relatively stable temperature, thereby effectively saving energy.

Product information

Application: Inside Greenhouse

System: Sliding, Hanging

Material composition: 100% Poylester

Pattern: Transparent diffuse full

Width: 430cm

Flame retardant: Yes

Warranty: 5years under all types of greenhouse covering, see HAMILTON’s limited warranty for all terms, conditions, and exclusions in writing

Properties	Value	Unit	Test methods
Weigth	57	g/m²
Thickness		mm
Width of strips	4.0	mm
Tensile strength	197	N	ISO 13934-1
Elongation		%	ISO 13934-1
Light transmission in sunlight	85	%	Integrated sphere
Light transmission when overcast	76	%	Integrated sphere
UV light transmission		%
Shading level	15	%
Heat preservation		%	GB/T 11048-2008 B
Energy saving	47	%
