Ultra Thick Insulating screen-R-OD-60


Availability:

Model:
Ultra Thick Insulating screen-R-OD-60
Brand:
Hamilton

Application: Suitable for all types of greenhouse covers, and can be installed with rolling-sliding or polyester rope hanging systems.

Product Description

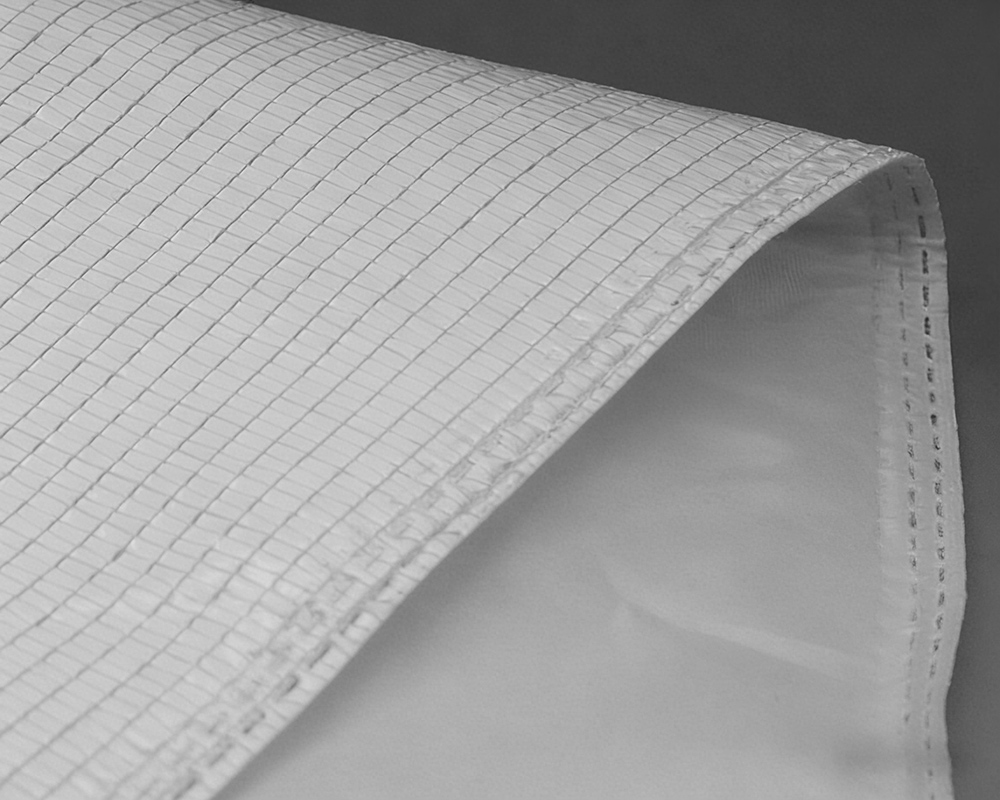

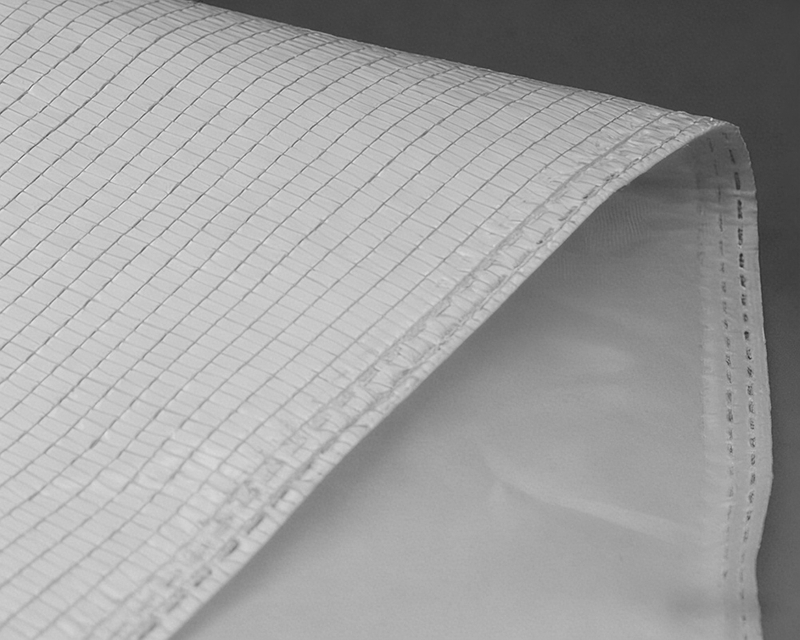

HAMILTON Ultra Thick Insulating Screen

R-OD 60

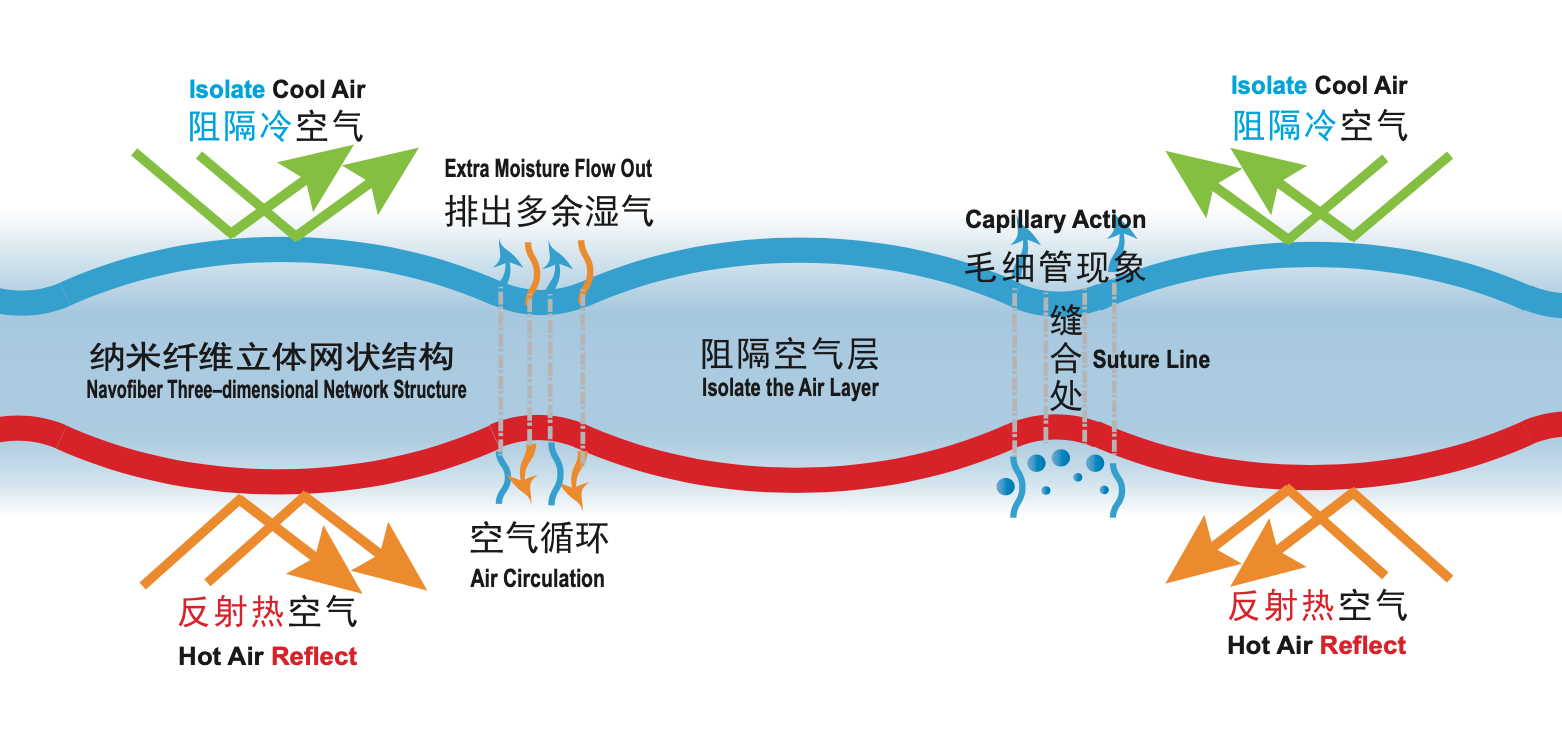

1. 1st Layer – UV-resistant and anti-aging screen for thermal insulation and breathability.

2. 2nd Layer – Nanofiber cotton suppresses bacterial growth, preventing moss and mold after years of use.

3. 3rd Layer – UV-resistant polyester fabric with outstanding insulation, ventilation and weather resistance.

4. 15cm gap between seams ensures easy water vapor transmission and smooth closing.

5. UV-stabilized & clean: High UV resistance and excellent anti-static properties keep the screen efficient and clean for years.

6. Compact design: Rolls up to a small size to maximize natural light.

7. Application: Suitable for all types of greenhouse covers, and can be installed with rolling-sliding or polyester rope hanging systems.

Product information

Application: Inside greenhouse

System: Rolling

Material composition: OptiDiffuse 78-45 + nanofiber cotton + polyester fabric

Standard widths(cm) : 420cm

Flame retardant: NO

Warranty: 5years under all types of greenhouse covering

Properties	Value	Unit	Test methods
Weight	260±10	g/m²
Thickness		mm
Tensile strength		N	ISO 13934-1
Elongation		%	ISO 13934-1

Properties	Value	Unit	Test methods
CLO	0.86400	Clo	GB/T 11048-
Thermal resistance	0.13392	K. m²/W	2008 B法
Heat Transfer Index	7.467	W/（m²*K）
Heat Preservation	60.18	%
