Outside Screen EWB 38-15 V


Availability:

Model:
Outside Screen EWB 38-15 V
Brand:
Hamilton

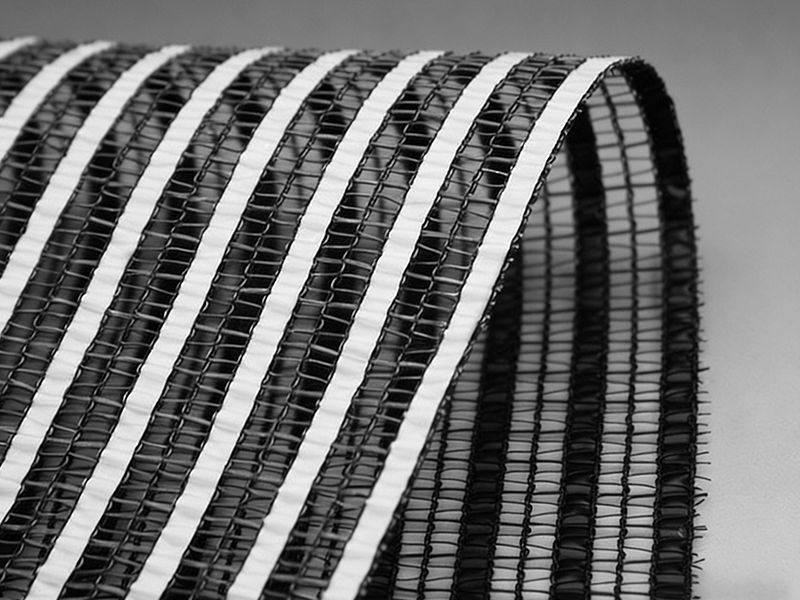

Outside Screen EWB 38-15 V is an external black-and-white screen composed of black-and-white film and an open structure.

Product Description

HAMILTON Outside Screen Series

Outside Screen EWB 38-15 V is an external black-and-white screen composed of black-and-white film and an open structure. This screen provides effective natural ventilation and shading, thereby reducing plant temperature and minimizing water evaporation from crops and soil surfaces. It is therefore highly suitable for hot climates and sensitive plants. When used at night, it reduces heat radiation loss, thereby decreasing condensation on plants.

Product information

Application: Outside Greenhouse

System: Rolling, Sliding

Material composition: 100% Polyolefin

Pattern: 1white-black, 2open

Flame retardant: NO

Warranty: 5years under all types of greenhouse covering, see HAMILTON’s limited warranty for all terms, conditions, and exclusions in writing

Properties	Value	Unit	Test methods
Weigth		g/m²
Thickness		mm
Width of strips	4.0	mm
Tensile strength		N	ISO 13934-1
Elongation		%	ISO 13934-1
Light transmission in sunlight	62	%	Integrated sphere
Light transmission when overcast	59	%	Integrated sphere
UV light transmission		%
Shading level	38	%
Heat preservation		%	GB/T 11048-2008 B
Energy saving	15	%

Cases Projects

Harm Textile’s climate screens have been successfully deployed in over 20 countries across Europe, North America, the Middle East, and Asia, supporting hundreds of modern greenhouse projects with customized, energy-efficient solutions.

UAE Greenhouse Project

The Open-Shade Series eleganly soves the ventlation limtatons of traditonal shade nets s high-porosty open-weave structure efectvely fiters excessSolar radiation to recuce greenhouse tem peraures while allowing unrestrcted arfiow This "cooling breathablity" maintans heathy gas exchange

Greenhouse Screen Selection Case Study-China

Climate Challenges to project location: Winter heat retention and climate stability, summer temperature and light balance.

Greenhouse Screen Selection Case Study-UAE

This extreme diffusion configuration is designed to completely eliminate shadows and light spots, preventing lettuce tip burn, which is the most challenging issue for hydroponic lettuce production.
