Open-Shade 52-20V


Availability:

Model:
Open-Shade 52-20V
Brand:
Hamilton

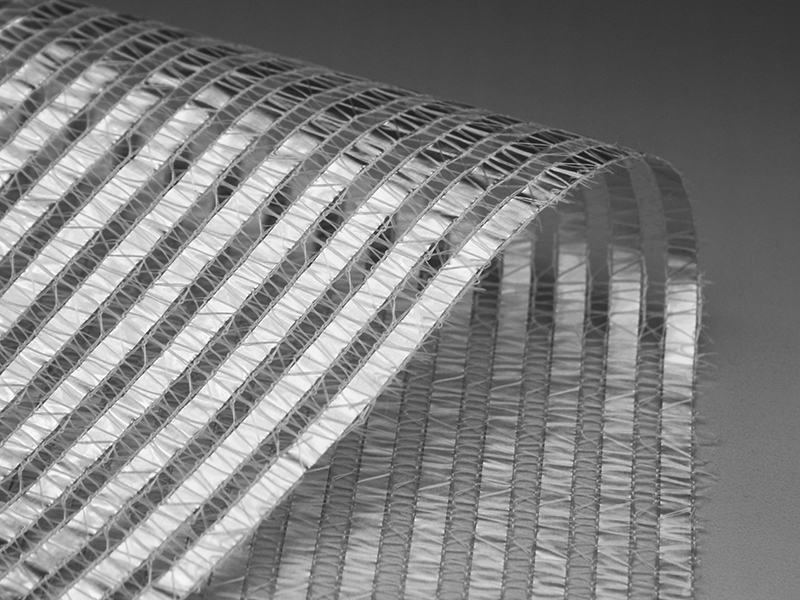

52-20 V is an aluminum foil screen for internal use, consisting of an aluminum foil reflective tape and a cut-out structure.

Product Description

HAMILTON Open-Shade Series

Open-Shade 52-20 V is an aluminum foil screen for internal use, consisting of an aluminum foil reflective tape and a cut-out structure. It has a good reflective function and can play a role in natural ventilation and shading. This reduces plant temperature and reduces water evaporation on crop and soil surfaces, making it ideal for hot climates and sensitive plants. Nighttime use reduces the loss of thermal radiation, thereby reducing condensation on plants.

Product information

Application: Inside Greenhouse

System: Sliding, Hanging

Pattern: 1Aluminum, 1open, 1Aluminum, Width 430cm

Material composition: 57% Poylester, 43% Aluminum

Flame retardant: NO

Warranty: 5years under all types of greenhouse covering, see HAMILTON’s limited warranty for all terms, conditions, and exclusions in writing

Properties	Value	Unit	Test methods
Weigth		g/m2
Thickness		mm
Width of strips	4.0	mm
Tensile strength		N	ISO 13934-1
Elongation		%	ISO 13934-1
Light transmission in sunlight	48	%	Integrated sphere
Light transmission when overcast	46	%	Integrated sphere
UV light transmission		%
Shading level	52	%
Heat preservation		%	GB/T 11048-2008 B
Energy saving	20	%
